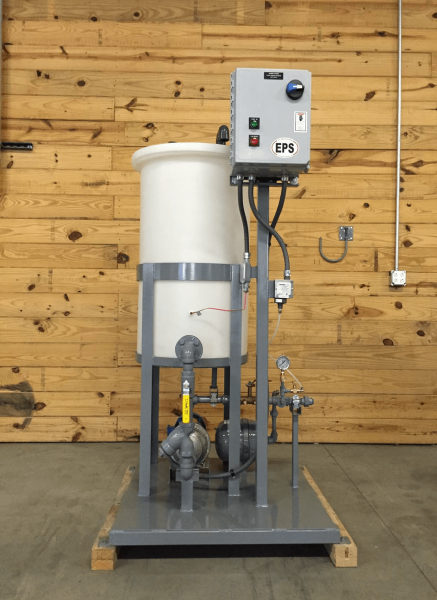

Cummins-Wagner Glycol Make-Up Units provide a water-glycol mixture automatically to a closed loop system.

Glycol Make-Up Units are offered in two standard models:

SPG-1.5-10 supplying 1.5GPM @ 100psi
SPG-10-3 supplying 10GPM @ 30psi

Each unit is automatically controlled by a pressure switch for ease of operation. When the system reaches the customer’s specified low pressure set point, the Glycol Make-Up Unit automatically feeds glycol into the system.

Standard packages include:

  • 55 gallon holding tank
  • Pump and motor
  • Pressure switch
  • Low Level Sensor and Shut off
  • Strainers
  • Discharge gauges
  • Control panel

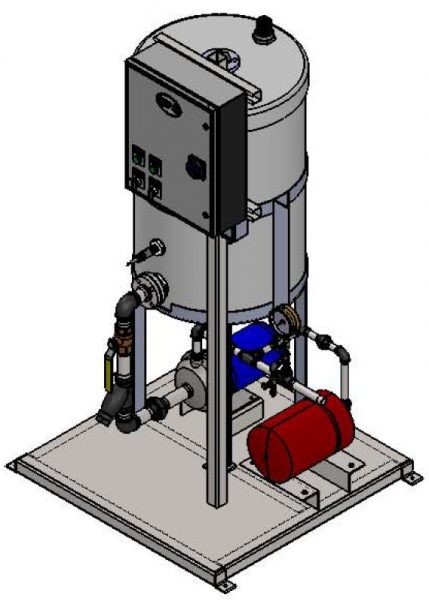

The entire package is mounted on a painted steel frame. All units are fully assembled, painted, wired and tested.

Each unit operates on a standard 1/60/115 power connection and supplies make-up glycol through a single system connection.

In addition to our standard units, our in-house engineering staff can create a custom package to meet your specific needs.

Contact us today at EPSsales@Cummins-Wagner.com

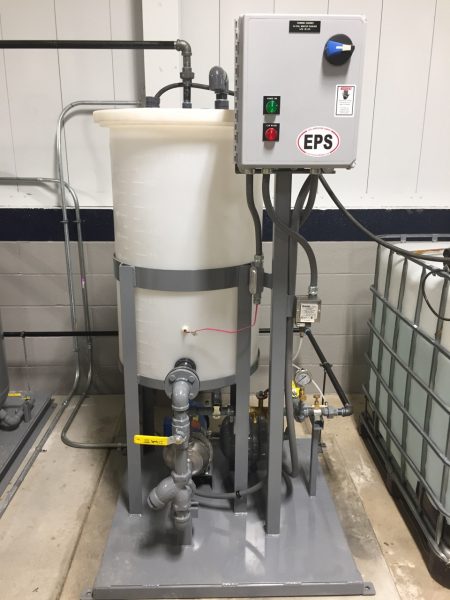

Example Packaged Systems:
